IXTUR | MAP-SERIE
FLAT PARTS | FROM 6 to 180kg
MAP-SERIE are pneumatically controlled neodymium permanent magnets, which have excellent size / gripping force ratio and extremely low residual magnetism. The compact size combined with high gripping force make them versatile for various applications including: lifters, robot grippers, fixtures, production automation
What should I consider when selecting the right magnets ?
Three factors influence a magnet’s holding force :
- The material properties
- The thickness of the load
- The distance between the gripping surface and the load (air gap)

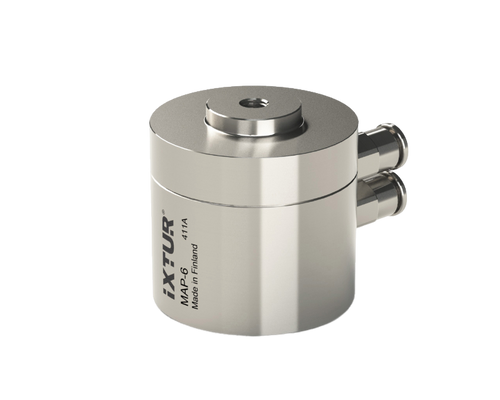

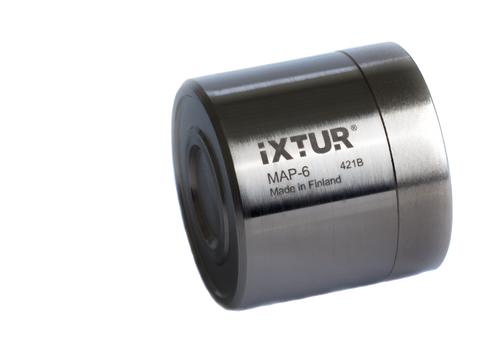

MAP-6
Lifting capacity: 6 kg*
Size: Ø35 x 35mm
Weight: 0.19 kg
Residual Grip capacity: 0.03 kg
Holding Force : min.177N*
* S355S≥4mm
Technical Information
Download brochure

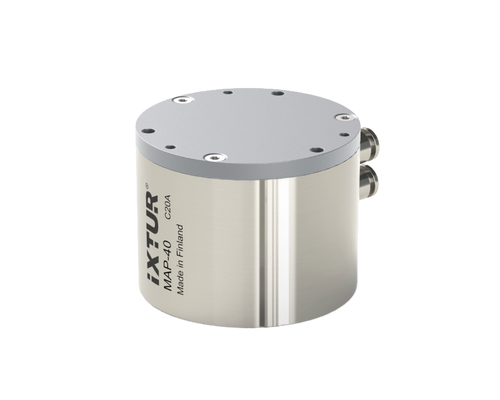

MAP-40
Lifting capacity: 40 kg
Size: Ø65 x 50 mm
Weight: 0.95 kg
Residual Grip capacity: 0.2 kg
Holding Force : min.1177N
* S355S≥4mm
Technical Information
Download brochure

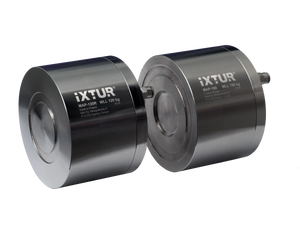

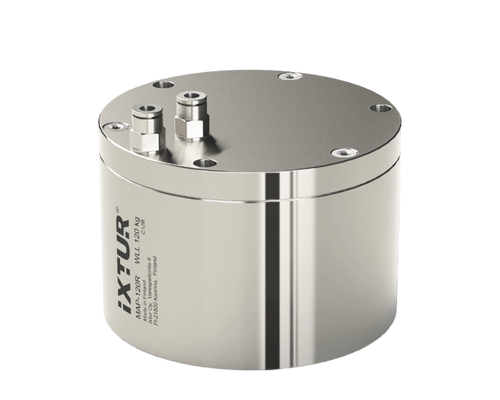

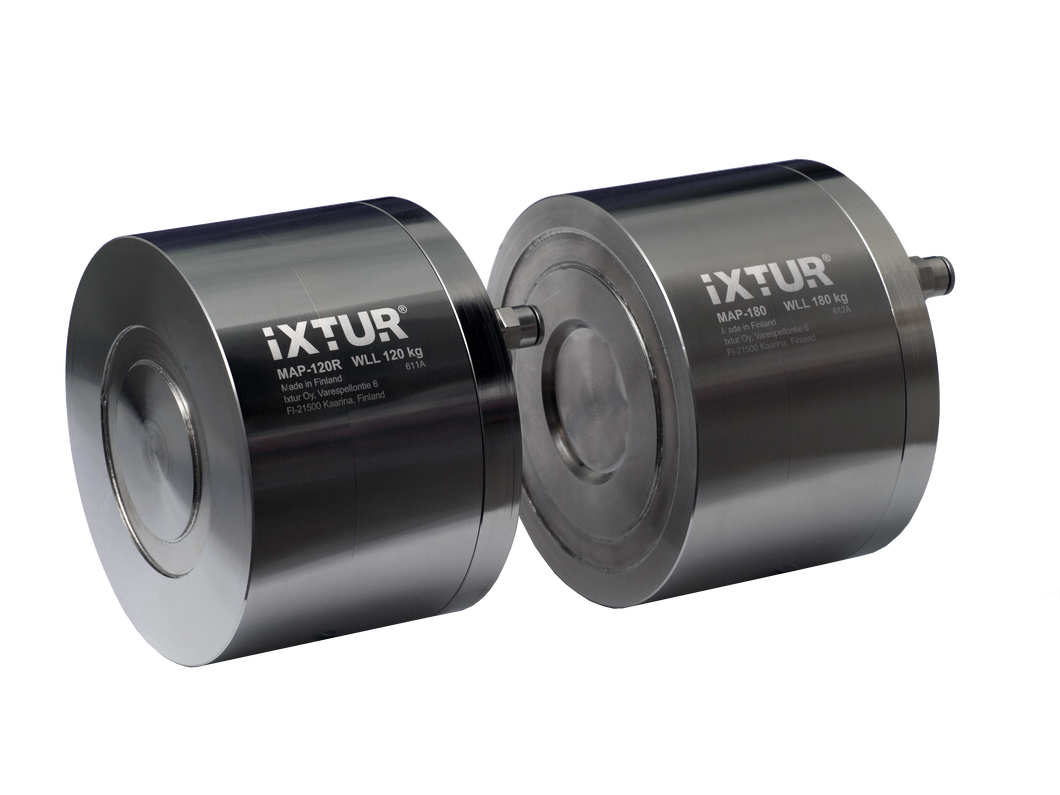

MAP-120
Lifting capacity: 120 kg
Size: Ø120 x 82mm
Weight: 5.8 kg
Residual Grip capacity: 6 kg
Holding Force : min.2060N
* S355S≥25mm
Technical Information
Download brochure

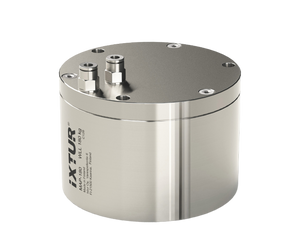

MAP-180
Lifting capacity: 180 kg
Size: Ø120 x 82mm
Weight: 5.8 kg
Residual Grip capacity: 6 kg
Holding Force : min.5300N
* S355S≥25mm
Technical Information
Download brochure
FAQ | Frequently Asked Questions
Which industries are they used in ?
- Metallurgical industry
- Machining
- Welding
- Industrial handling
- Automation
What are the key advantages of using MAP series magnets ?
- Excellent size to gripping capacity ratio
- Easy control by compressed air - No electricity required
- Suitable for robot grippers of pick and place applications
- Optimal for robotics, other industrial automation, lifting and workholding
- Maintenance free - Keep their magnetic state in case of lost air pressure
- MRP series allow handling of wide range of load shapes and sizes
How does material thickness affect performance ?
Thicker materials allow better magnetic flux circulation, resulting in higher holding force.
Thin materials can significantly reduce lifting capacity.
How does an air gap affect magnetic holding force ?
Even a minimal air gap greatly reduces holding force, with an exponential drop as the gap increases.
This gap can result from coatings or layers such as paint, zinc, rust, frost, or simply air.
Applicable Safety Standards and Certifications
The Ixtur magnet systems are engineered in full compliance with internationally recognized safety standards, including :
- EN 13155:2003+A2:2009 – Lifting equipment safety
- ISO 12100:2010 – Machinery safety and risk reduction principles
- ISO/TR 14121-2 – Advanced risk assessment methodology
MAGNETS FOR FLAT & ROND PARTS
Ixtur is a Finnish manufacturer
developing a wide range of pneumatically magnets for flat and rond parts
More information about our products ?
