UNIGRIPPER @ AXYSTO | Electric Blowers - Robot - Gripper | Typical side channel blower | An electric blower, in most cases side-channel blowers, is the best and most energy-efficient alternative for larger grippers, and grippers in general that require high flows of vacuum. UniGripper supplies a broad range of blowers, which allows blowers of optimal size to be supplied for each project

SIDE CHANNEL BLOWERS

An electric blower, in most cases side-channel blowers, is the best and most energy-efficient alternative for larger grippers, and grippers in general that require high flows of vacuum. UniGripper supplies a broad range of blowers, which allows blowers of optimal size to be supplied for each project.

A gripper system with a blower typically requires more integration than a gripper powered with ejectors.

Les pompes à canal latéral génèrent un flux continu de vide ainsi qu’un flux continu d’air d’échappement. Nos inverseur permettent de connecter le tuyau de vide entre la soufflante et le préhenseur soit à l’entrée, soit à la sortie de la soufflante. Lorsque la connexion se fait sur la sortie, l’air d’échappement traverse le préhenseur, ce qui permet à la fois une libération rapide des produits pour des cycles plus courts, et un nettoyage efficace de la tête du préhenseur

REVERSE BLOW UNITS

Side channel blowers generate a continuous vacuum flow and a continuous exhaust flow. Our reversing valves enables the vacuum hose between blower and gripper to be linked either to the inlet or outlet of the blower

When in the outlet position, the exhaust air from the blower goes through the gripper, creating both a quick release of products for faster cycle times and caters for efficient cleaning of the gripper head

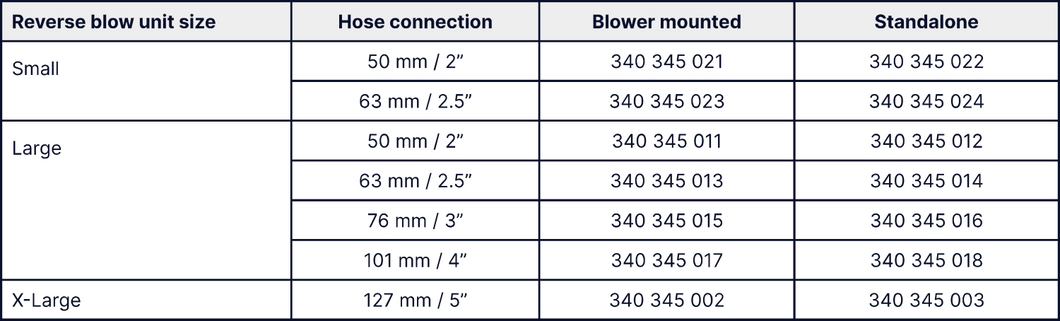

Unigripper Reverse Blow Unit 50 mm, 63 mm, 76 mm, 101 mm, 127 mm Liste référence & Spare parts ; 340 345 021, 340 345 022, 340 345 023, 340 345 024, 340 345 011, 340 345 012, 340 345 013, 340 345 014, 340 345 015, 340 345 016, 340 345 017, 340 345 018, 340 345 019, 340 345 020 Formats : 50 mm, 63 mm, 76 mm, 101 mm, 127 mm

VACUUM HOSE

Vacuum distribution through hoses demands specific performance characteristics to ensure long-lasting durability. We offer a range of carefully selected vacuum hose types listed below to secure proper attachment to fittings, hose clamps are required

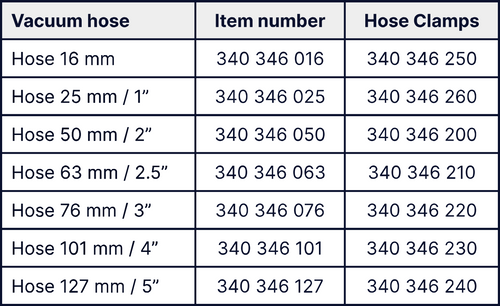

UNIGRIPPER | Liste VACUUM HOSE (tuyaux) 340 346 016, 340 346 025, 340 346 050, 340 346 063, 340 346 076, 340 346 101, 340 346 127 Liste Hose Clamp (collier de serrage) 340 346 250, 340 346 260, 340 346 200, 340 346 210, 340 346 220, 340 346 230, 340 346 240 Formats : 50 mm, 63 mm, 76 mm, 101 mm, 127 mm

INSULATION CABINETS

Insulation cabinets are sound enclosures for side channel blowers of almost any size

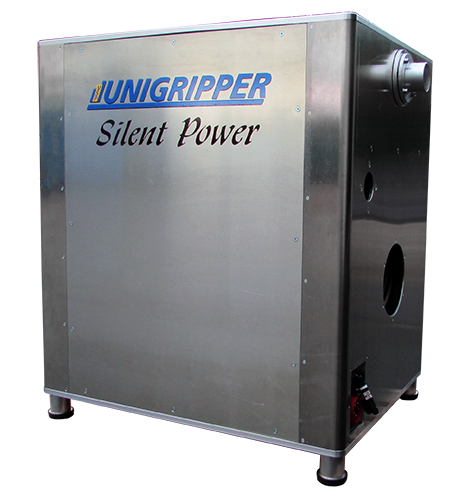

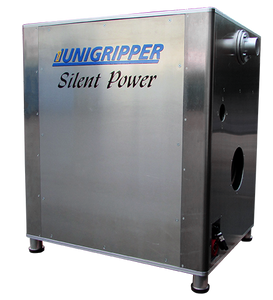

UniGripper Silent Power is a compact sound enclosure for side channel blowers of almost any size. The Silent Power cabinet comes with the blower ready to connect to power supply and also integrates a reversing valve allowing switching inlet and outlet air to the hose connection on the cabinet. Download information folder

The compact version comes with the blower ready to connect to power supply and also integrates a reversing valve allowing switching inlet and outlet air to the hose connection on the cabinet

Size : 950 x 750 x H 1092mm
Download brochure

Insluation cabinet for side channel blower

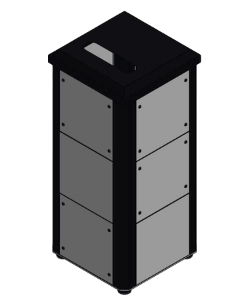

The classic version is a higher model, in which it is possible to install the blower and the flow inverter vertically. However, it is the customer's responsibility to install the equipment inside the cabinet

Size : 1000 x 1000 x H 2337mm
Download brochure

Préchargeur : vide instantané, cycles rapides

PRELOADER & SLIDE VALVE

This accelerates cycle times and can allow for smaller blowers or compensate for long hose setups

The Slide valve is designed for optimum flow and has a low height
The Preloader is designed for minimal footprint

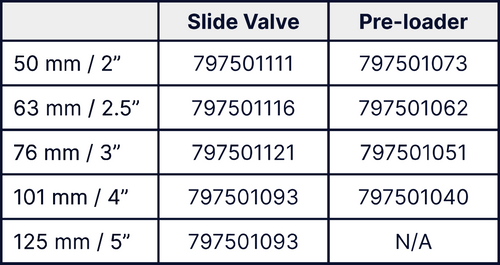

UNIGRIPPER | Références des Slide Valves ; 797501111, 797501106, 797501121, 797501093, 797501093 Spare parts Pre-loaders ; 797501073, 797501062, 797501051, 797501040 Formats - Diamètres associés Ø : 50 mm, 63 mm, 76 mm, 101 mm, 127 mm

SWIVEL JOINTS

Rotating the UniGripper can strain vacuum hoses, requiring careful integration to avoid wear. Our custom-designed swivel joint minimizes tension by redirecting the hose during rotation—offering a unique solution not found elsewhere on the market

Our aluminium swivel joint features a sealed, high-grade ball bearing to ensure reliable performance in demanding environments. Available in five sizes for hose diameters of 50, 63, 76, 101, and 127 mm, it supports both base-mounted installation on the UniGripper and inline hose-to-hose configurations.

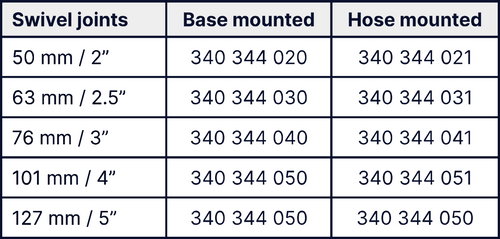

UNIGRIPPER - Swivel Joints (Base & Hose mounted) ; Liste de pièces Base mounted 340 340 020, 340 344 030, 340 344 040, 340 344 050, 340 344 060 Spare parts Hose mounted 340 344 021, 340 344 031, 340 344 041, 340 344 051, 340 344 050 Formats : 50 mm, 63 mm, 76 mm, 101 mm, 127 mm
Joint rotatif droit : tension réduite, solution unique - 50, 63, 76, 102, and 125 mm. Ref./ : 340346321, 340346322, 340346331, 340346332, 340346341, 340346342, 340346351, 340346352, 340346361, 340346362 ; 9750-209, 9750-214, 9750-488, 9750-215, 9750-221, 9750-1010, 9750-245, 9750-379, 9750-213
Joint rotatif 45° : tension réduite, solution unique - 50, 63, 76, 102, and 125 mm ; 9750-209, 9750-214, 9750-488, 9750-215, 9750-221, 9750-1010, 9750-245, 9750-379, 9750-213
Pivot 90° : flexibilité accrue, design exclusif – 50, 63, 76, 102 et 125 mm ; 340346321, 340346322, 340346331, 340346332, 340346341, 340346342, 340346351, 340346352, 340346361, 340346362, 9750-209, 9750-214, 9750-488, 9750-215, 9750-221, 9750-1010, 9750-245, 9750-379, 9750-213

BASE-MOUNTED

BASE-MOUNTED 90°

BASE-MOUNTED 45°

Joint Rotatif droit - deux roulements : flexibilité accrue, 50, 63, 76, 102 et 125 mm ; 340346321, 340346322, 340346331, 340346332, 340346341, 340346342, 340346351, 340346352, 340346361, 340346362

Free Rotation 360°

Le SWIBOT de UniGripper est une solution innovante de connexion rotative pour systèmes de préhension par le vide, spécialement développée pour résoudre les problèmes de gestion de tuyauterie sur les bras robotisés. Grâce à fixation pivotante (rotation) intégrée, le SWIBOT permet une rotation fluide du préhenseur sans torsion ni tension sur les flexibles, même dans les applications à forte dynamique.
Sold out

HOSE-MOUNTED

TEPRO MACHINE & PAC SYSTEM

Unigripper is a range of products developped by Tepro /- Sweden-based company
and have worked in the packaging and automation industry
for more than 40 years
