MECADEMIC | MECA500

SMALLEST & MOST COMPACT 6-AXIS ROBOT

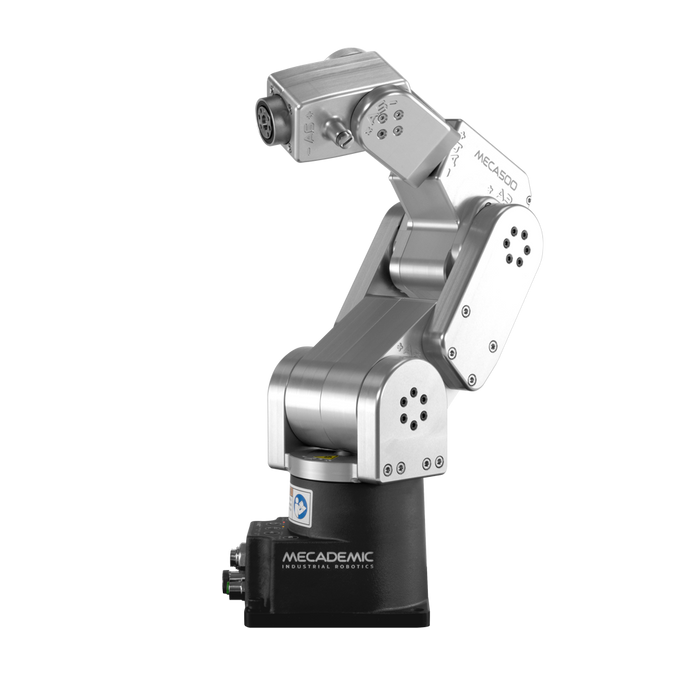

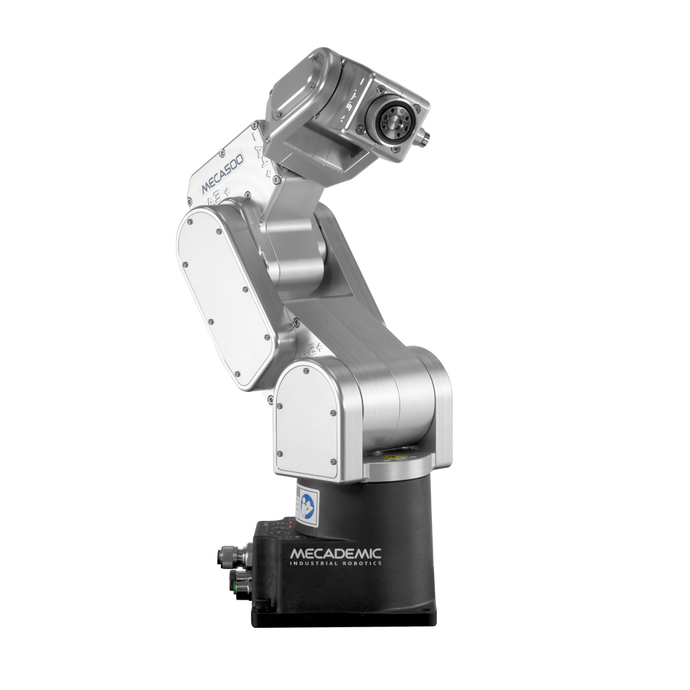

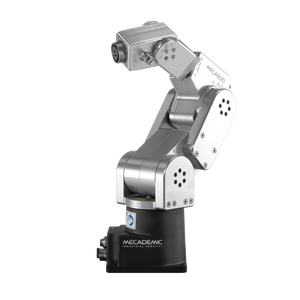

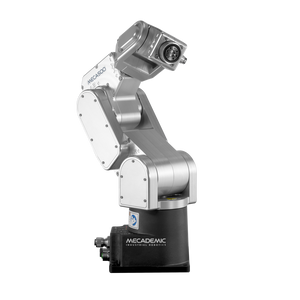

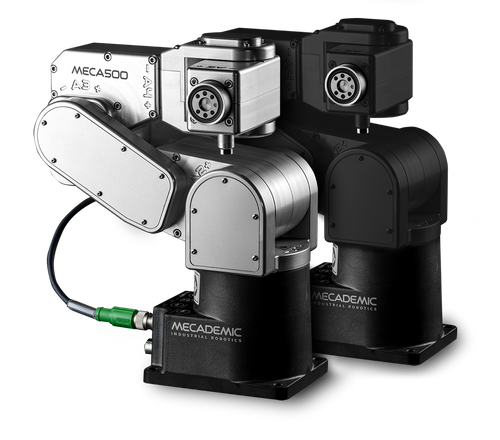

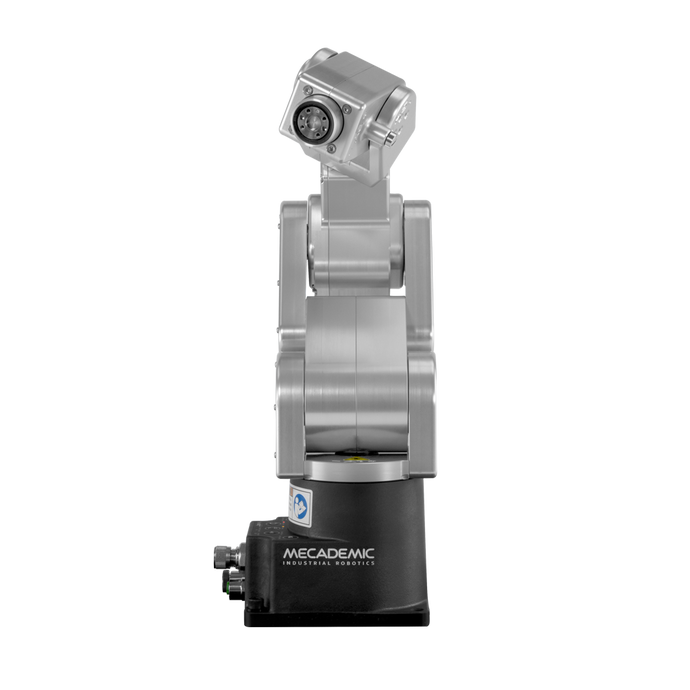

The Meca500 is the most compact and precise six-axis industrial robot.

Download brochure

ULTRA COMPACT

HIGHLY PRECISE

EASY TO INTEGRATE

Controller is embedded into the base
2x Smaller than comparable market options

Position repeatability
0.005mm

Mounting in any orientation
Doesn't require any training courses

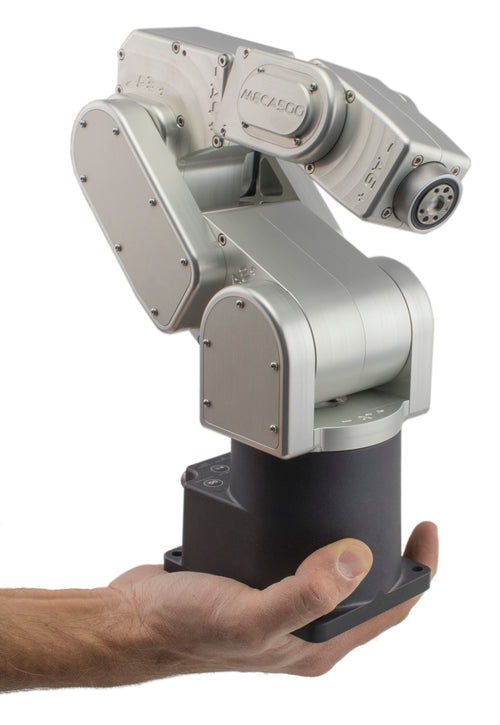

Le Meca500 est le robot industriel 6 axes le plus compact au monde, conçu par Mecademic pour les applications de micromanipulation, tests automatisés, assemblage de précision et laboratoire. Avec un poids de seulement 4,5 kg et une taille si réduite qu’il tient dans une main, il redéfinit les standards de la robotique industrielle en matière de miniaturisation, de précision et de simplicité d’intégration.

PAYLOAD

0.5Kg

LOW CONSUMPTION

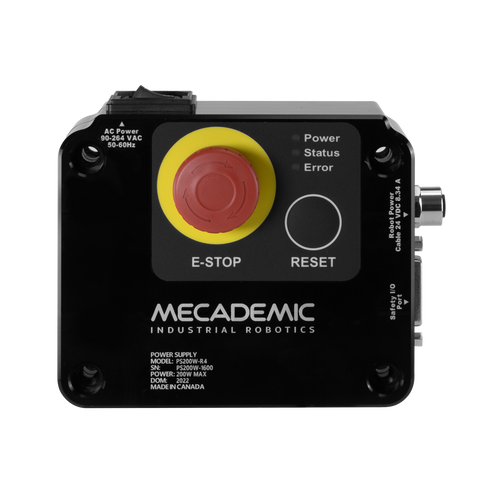

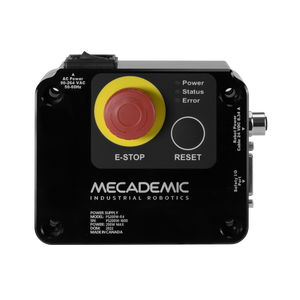

MCS500 robots include external 24/36V power supplies, equipped with embedded
safety modules, E-Stops and safety I/O interface

The power supplies can be connected to a standard electrical outlet

Supply voltage : 220V - single phase 7 A
Safety module : Cat. 3 / PL

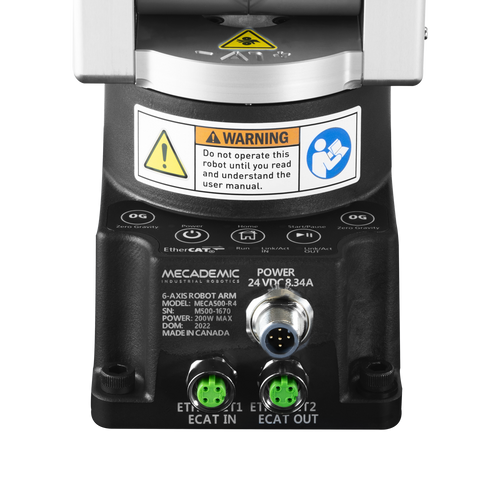

BUILT-IN CONTROLLER

Mecademic robots’ controllers are embedded in their palm-sized base
There is no bulky controller cabinet, teach pendant or messy cables.
The robot arms are ideal for small, confined spaces

Communication : EtherCat - Profinet - TCP Socket - EtherNet/IPProgramming Languages : C++ - C# - Python & MoreI/Os : 4 inputs 5-24V | 3 outupts 0-24V

MECADEMIC | COMPACT ROBOTS

Founded in 2013 in Montreal - Canada, Mecademic started with a focus on the robotics research and education sector. Mecademic had now developed two industrial robot models : Meca500 and Msc500, the world's smallest and most precise robots
