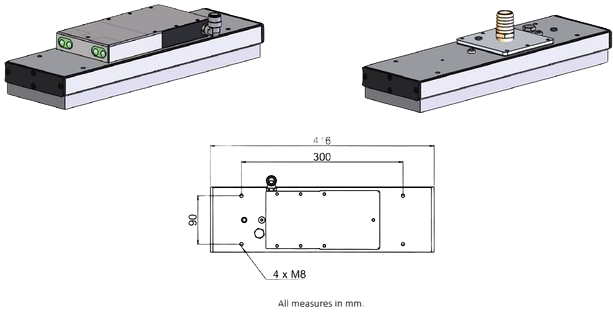

BAsic 120/400 Article numbers ; 310400015, 310400210, 310400010, 31040016, 310400211 310400011, 310400017, 310400212, 310400012, 310400018, 310400213, 310400013 | Foam Spare parts ; 330400210, 330400220, 30400310, 330400320
UNIGRIPPER - Basic-range 120/400 Article numbers ; 310400015, 310400210, 310400010, 31040016, 310400211 310400011, 310400017, 310400212, 310400012, 310400018, 310400213, 310400013 | Foam Spare parts ; 330400210, 330400220, 30400310, 330400320
BASIC 120 - 400

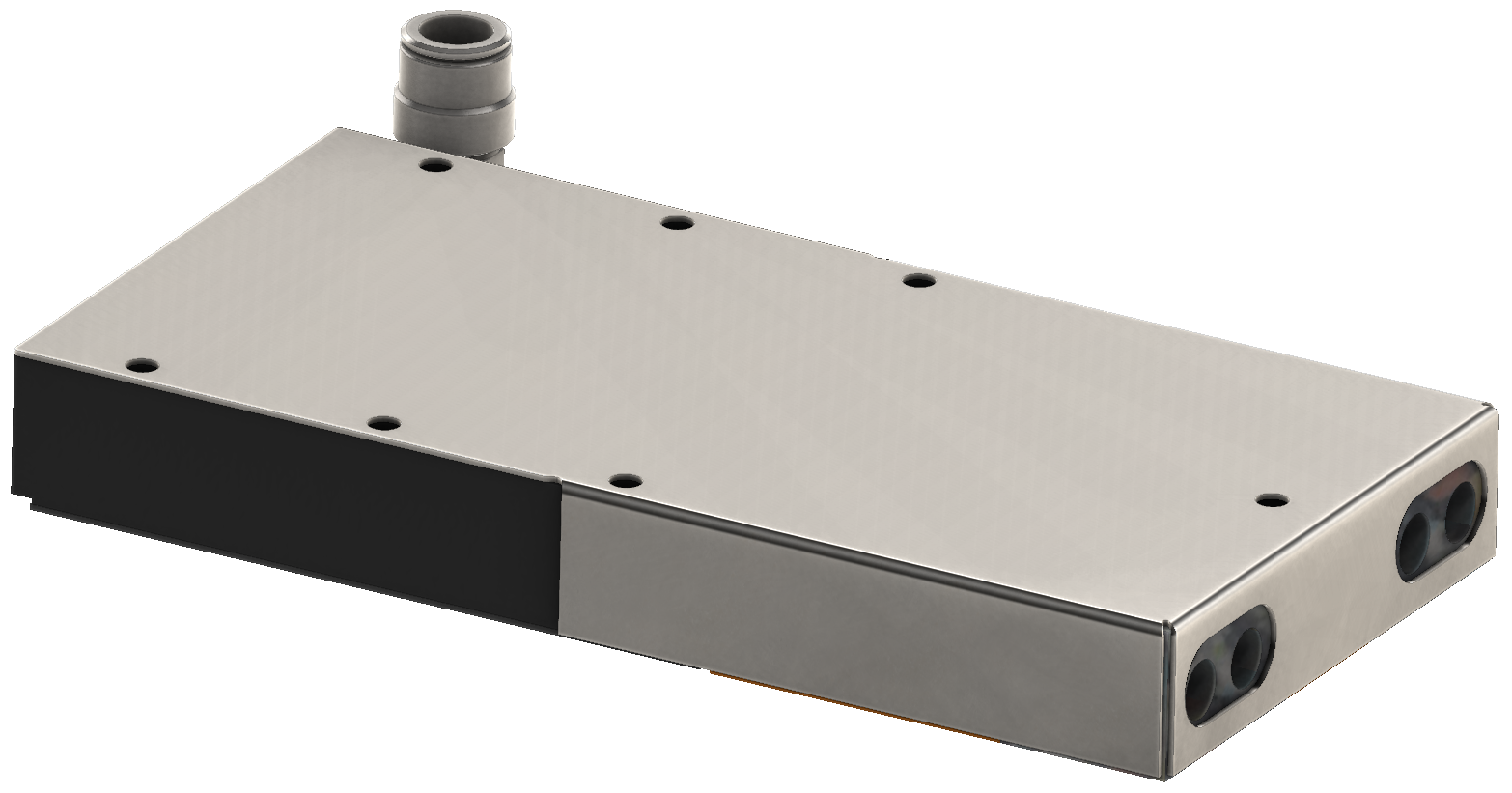

UNIGRIPPER @ AXYSTO - Vacuum generator | -EB - Basic : Compact and simple vacuum pump in a single configuration.

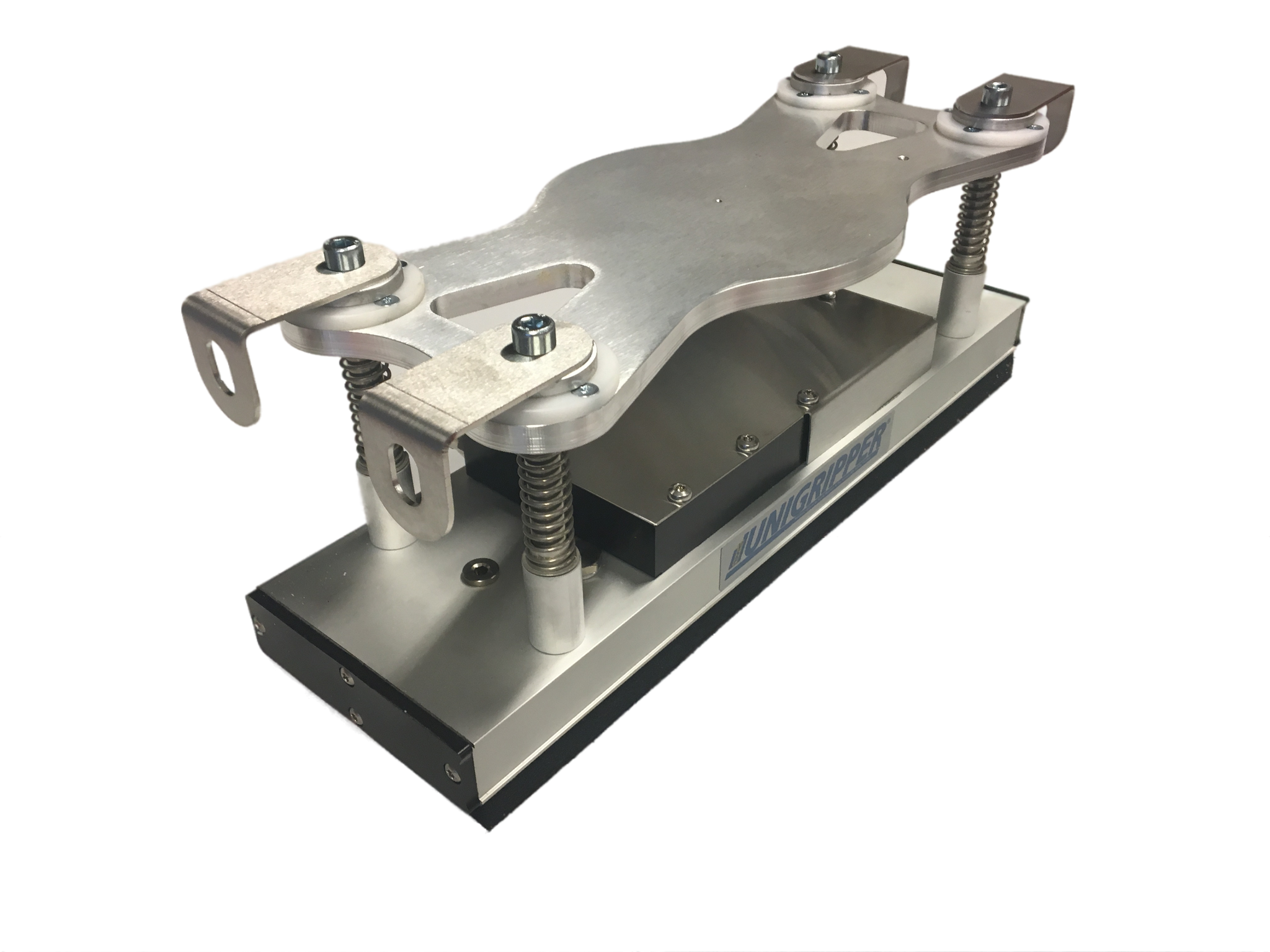

Basic Gripper @ Axysto | UniGripper Basic is a series of foam grippers with focus on cost effectiveness and simplicity. UniGripper Basic is primarily intended for handling of low-porosity materials with high coverage of product. UniGripper Basic is based on a 120mm profile containing flow restriction valves. The foam pad is glues directly to the profile. On top of the profile various options for vacuum genaration can be mounted.
UNIGRIPPER - Standard Module System | Standard Module of 120 mm width. Standard lengths 200, 300, 400, 600, 800, 1000, 1200 and 1400mm.
  • Load image into Gallery viewer, BAsic 120/400 Article numbers ; 310400015, 310400210, 310400010, 31040016, 310400211 310400011, 310400017, 310400212, 310400012, 310400018, 310400213, 310400013 | Foam Spare parts ; 330400210, 330400220, 30400310, 330400320
  • Load image into Gallery viewer, UNIGRIPPER - Basic-range 120/400 Article numbers ; 310400015, 310400210, 310400010, 31040016, 310400211 310400011, 310400017, 310400212, 310400012, 310400018, 310400213, 310400013 | Foam Spare parts ; 330400210, 330400220, 30400310, 330400320
  • Load image into Gallery viewer, BASIC 120 - 400
  • Load image into Gallery viewer, UNIGRIPPER @ AXYSTO - Vacuum generator | -EB - Basic : Compact and simple vacuum pump in a single configuration.
  • Load image into Gallery viewer, Basic Gripper @ Axysto | UniGripper Basic is a series of foam grippers with focus on cost effectiveness and simplicity. UniGripper Basic is primarily intended for handling of low-porosity materials with high coverage of product. UniGripper Basic is based on a 120mm profile containing flow restriction valves. The foam pad is glues directly to the profile. On top of the profile various options for vacuum genaration can be mounted.
  • Load image into Gallery viewer, UNIGRIPPER - Standard Module System | Standard Module of 120 mm width. Standard lengths 200, 300, 400, 600, 800, 1000, 1200 and 1400mm.

BASIC 120 - 400

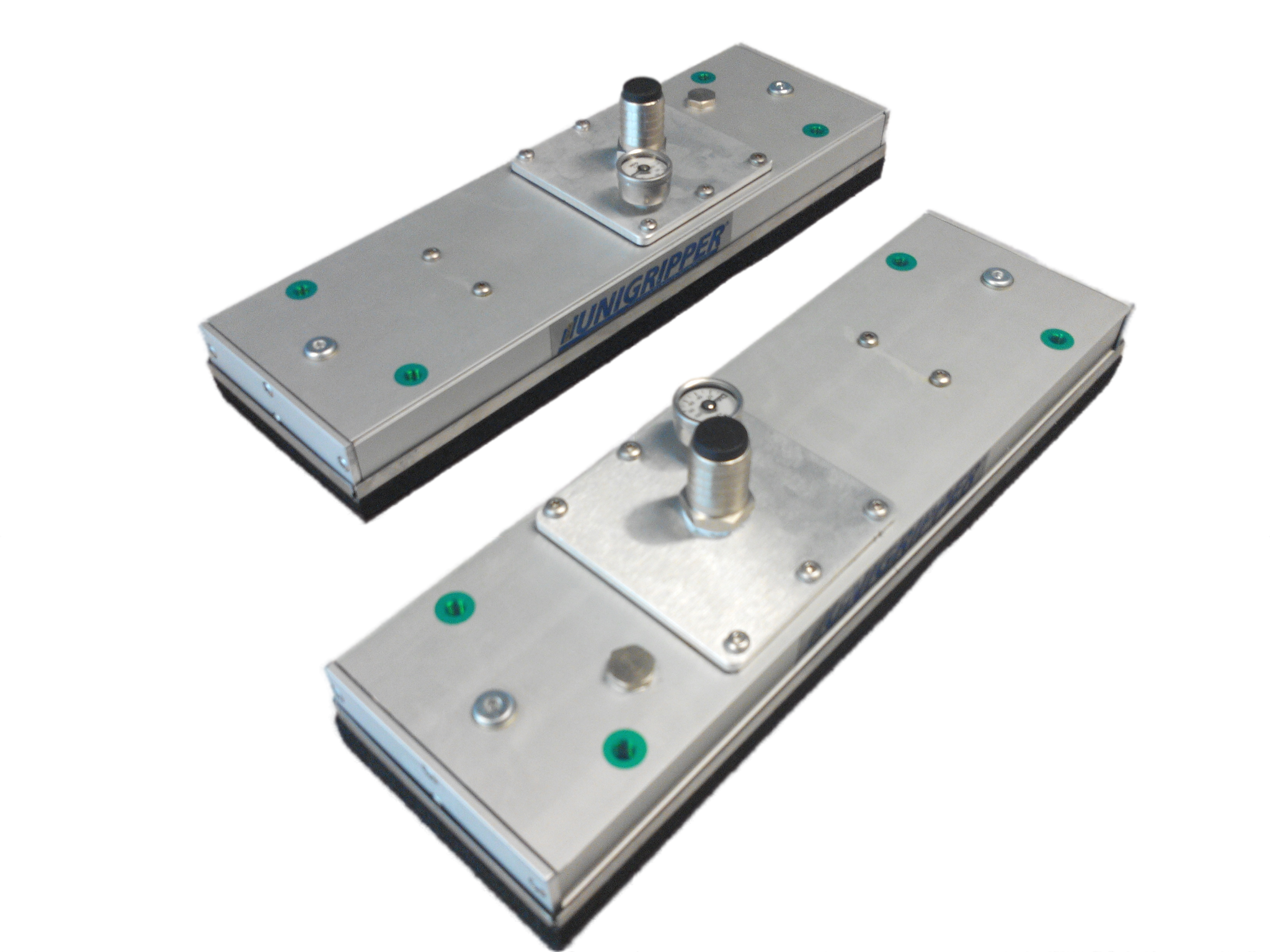

UniGripper Basic is a series of foam grippers with focus on cost effectiveness and simplicity.  This product is primarily intended for handling of low-porosity materials with high coverage of product.

Each length of the UniGripper Basic unit has one or more locations where vacuum pumps can be connected.  Either vacuum pumps can be mounted directly on the gripper or hose connections can be used to connect to extrnal vacuum pump.

UniGripper Basic is available in different valve configurations. Each valve pitch is associated with two standard foam pad design, as shown in picture

UniGripper Basic is based on a 120mm profile containing flow restriction valves.

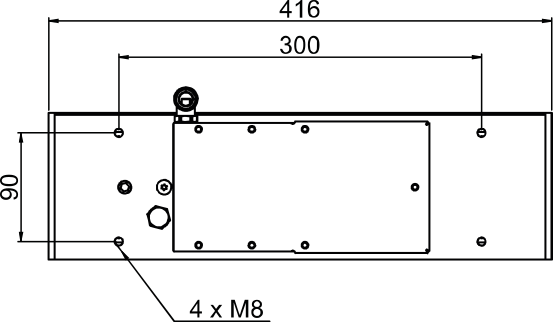

All lengths of the Basic series have the same side dimensions and heights.
Available lengths are : 400 - 600 - 850 - 1000 - 1250 - 1400
