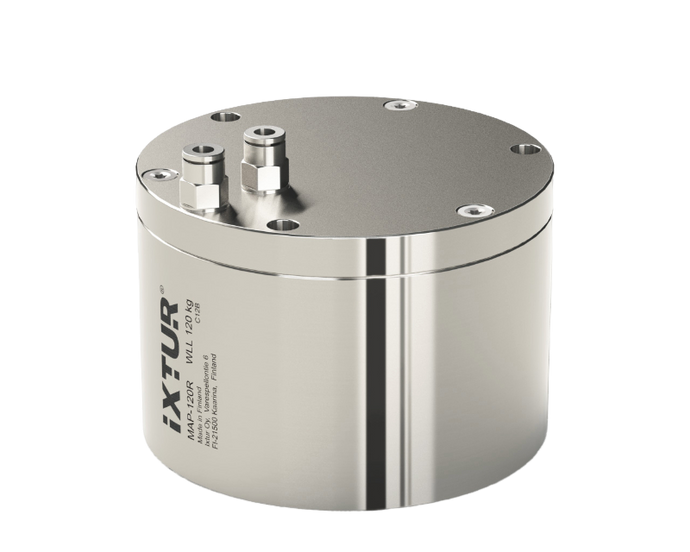

MAP-120R Pneumatic Magnet
- Lifting capacity : 120 kg
- Size : Ø120 x 82mm
- Especially for flat loads
Download brochure Map-120
Ixtur MAP magnets are pneumatically controlled neodymium permanent magnets, which have excellent size to gripping capacity ratio and extremely low residual gripping force.
The magnets do not change their magnetic state in case of loss of compressed air.
The compact size combined with high gripping force provides high versatility. MAP series magnets are maintenance-free and have short cycle time, allowing high production speed and efficient automation.
The magnets can be used in various applications: lifters, robot grippers, fixtures, production automation, etc.
