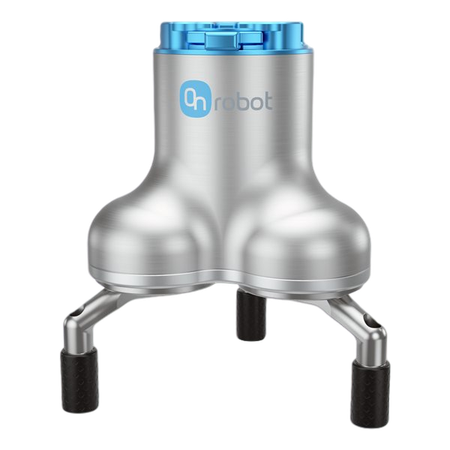

3FG25 | ROTATING 3-FINGERS

Flexible production - large-stroke optimizes CNC lathe-tending for multiple part sizes with a single 3-finger gripper

• Payload capacity: up to 25 kg (form-fit) and 15 kg (force-fit) for versatile industrial handling.
• Wide gripping range: supports diameters from 18–155 mm (external) and 41–184 mm (internal).
• Adjustable gripping force: 50–450 N (up to 300 N in flexible mode), programmable from 1–100%.
• High precision: finger position resolution of 0.1 mm with repeatability up to 0.2 mm.
• Fast operation: gripping speed up to 90 mm/s with ~500 ms cycle time.
• Integrated BLDC motor: ensures reliable and efficient performance in demanding applications.
• Industrial protection: IP67-rated, suitable for harsh environments.
• Secure holding system: built-in brake maintains grip even during power loss.
• Compact design: dimensions 156 × 168 × 187 mm, weight 1.6 kg for easy integration

Is the 3FG25 Mechanical Gripper Safe in case of Power Loss ?

Yes, the integrated brake system automatically holds the workpiece securely without power, ensuring safe operation even during unexpected shutdowns.

Why 3FG25 ROTATING 3-FINGERS ?

OnRobot's 3FG25 electric gripper boasts a robust design and a 25 kg payload capacity, providing unmatched flexibility for handling various parts with a single gripper. Its ready-to-use feature streamlines deployment and minimizes engineering efforts, while its compatibility with all major robot brands makes it a versatile solution for CNC machine tending, material handling, and assembly processes.

Suitable for :

ABB, Denso, Doosan, Epson, Fanuc, Hanwha, Jaka, Kassow Robots, Kawasaki, Kuka, Nachi, Omron, Techman, Universal Robot, Yaskawa,..
